3D Raised Logo vs UV DTF Crystal Label: Ink, Film, Transfer Method & Applications

一個 UV DTF crystal label 和 3D raised apparel logo may be produced from a similar UV printing platform, but they are not the same transfer product.

The most important difference is not simply whether one looks flatter and the other looks more raised.

They use different:

• ink systems
• film systems
• adhesion mechanisms
• transfer methods
• substrate types
• production requirements

A conventional UV DTF crystal label typically uses standard UV-curable ink and Crystal Label A/B Film to transfer graphics onto suitable hard surfaces.

A 3D raised apparel logo uses high-flexibility / 3D embossed UV ink, high-build white ink, flexible CMYK, varnish, TPU transfer materials and TPU hot-melt adhesive before being heat pressed onto textiles.

The simplest way to remember the difference is:

Crystal Label = Standard UV Ink + A/B Film + Hard-Surface Transfer

3D Raised Logo = Flexible 3D UV Ink + TPU Transfer System + Heat Press + Textile

If you are deciding which workflow fits your products, the rest of this guide explains the differences in detail.

Quick Comparison: Crystal Label vs 3D Raised Logo

Why “3D UV DTF” Can Be Confusing

The term 3D UV DTF is used very loosely online.

One supplier may use it to describe a glossy UV DTF sticker with raised varnish.

Another may use it for a thick, flexible TPU apparel badge.

These products can look visually related, but their production systems are different.

That is why the phrase “3D UV DTF” by itself is not enough to identify a workflow.

Instead, ask five questions:

1. What ink is being used?
2. What film is being used?
3. How does the adhesive work?
4. How is the transfer applied?
5. What substrate is the final product designed for?

Those questions reveal whether you are working with a crystal-label system or a textile raised-logo system.

What Is a UV DTF Crystal Label?

A UV DTF crystal label is a printed transfer designed primarily for suitable hard surfaces.

The artwork is printed onto 電影 using UV-curable inks, commonly including color, white and varnish.

The printed A Film is then laminated with B級電影, which becomes the carrier used to move the printed graphic onto the final object.

簡化的工作流程是：

Print on A Film

↓

紫外線固化

↓

Laminate with B Film

↓

Cut / Prepare Transfer

↓

Apply to Hard Surface

↓

Press / Burnish

↓

Peel Carrier

典型應用包括：

• 玻璃瓶
• 不倒翁
• 亞克力標牌
• 陶瓷杯
• coated metal
• many plastics
• 電話盒
• finished wood
• 促銷產品

For a deeper explanation of the film system, see the EraSmart A/B Film Guide。

You can also read 如何在家製作 UV DTF 貼紙 for the complete standard crystal-label workflow.

What Is a 3D Raised Apparel Logo?

A 3D raised apparel logo is designed specifically for flexible textile applications.

Instead of using white ink mainly as a backing layer, the EraSmart 3D workflow repeatedly prints high-build flexible white ink to construct real physical height.

The structure is then completed with:

• flexible CMYK color
• 漆
• controlled UV curing
• flexible base film
• TPU hot-melt transfer materials
• 輪廓切割
• 熱壓

The resulting badge can reach approximately 0.3–1.2 mm of raised height, depending on the validated production profile.

典型應用包括：

• T恤
• 連帽衫
• 運動衫
• 運動衫
• 帽子
• textile bags
• 時尚品牌
• team emblems

For the complete application system, see 採用 UV DTF 技術的 3D 浮雕標誌列印。

Difference #1: The Ink System Is Different

This is one of the most important differences.

UV DTF Crystal Label

A conventional crystal-label workflow uses standard UV-curable ink designed for UV DTF hard-surface transfer.

Typical ink functions include:

• CMYK for visible color
• white for opacity
• varnish for gloss and surface effects

The finished transfer is intended primarily for relatively stable hard surfaces.

3D 凸起服裝標誌

The textile workflow requires a more flexible ink system.

EraSmart’s raised-logo process uses:

High-Flexibility UV Curable Ink for Textile / 3D Embossed UV Ink

including:

• high-build flexible white
• flexible CMYK
• 漆

The finished ink structure must tolerate:

• garment bending
• textile movement
• 傳熱
• routine handling
• validated washing conditions

Using an ink system designed only for rigid surfaces can create an entirely different mechanical result after curing.

Difference #2: White Ink Performs a Different Job

White ink exists in both workflows, but it does not have the same primary purpose.

In a Crystal Label

White ink mainly supports:

• 不透明度
• 色彩亮度
• isolation from the substrate color
• image visibility

It is primarily part of the optical printing structure.

In a 3D Raised Logo

White ink becomes a structural material。

Repeated white layers build physical thickness.

The simplified structure becomes:

White → Cure → White → Cure → White → Continue as Required

Then flexible CMYK and varnish are printed over the raised structure.

This is why the number and stability of white passes can strongly influence the final badge height.

For a deeper technical explanation, read 白色墨水層如何在 UV DTF 列印中創建 3D 浮雕效果。

Difference #3: A/B Film and TPU Transfer Film Are Not the Same System

Film selection is another fundamental difference.

Crystal Label: A/B Film

A/B Film is a two-film transfer system.

電影

receives the printed UV artwork.

B級電影

is laminated over the printed design and acts as the transfer carrier.

The finished graphic is then applied to the target hard surface using pressure.

3D Raised Logo: Flexible TPU Transfer System

The raised apparel workflow uses materials designed for flexibility and heat transfer.

Depending on the specific consumable configuration, these may include:

• Flexible UV-DTF Base Film
• TPU Hot Melt Film for 3D Transfer
• TPU Hot Melt Adhesive Film

The TPU hot-melt adhesive is especially important.

During heat pressing, it activates under heat and pressure and forms the bond between the raised badge and the textile surface.

This is fundamentally different from applying an A/B film crystal label to a bottle or acrylic panel.

Difference #4: The Adhesion Mechanism Is Different

A crystal label mainly relies on its transfer adhesive bonding to a compatible smooth surface.

The user positions the transfer, applies pressure and removes the carrier.

A 3D apparel logo uses thermal bonding。

The TPU hot-melt adhesive needs:

heat + pressure + time

to create a reliable bond with the textile.

For the EraSmart 3D raised-logo workflow, the current reference range is approximately:

• 150–165°C
• 10–15 seconds
• 0.4–0.6 MPa

Final conditions must still be tested against the actual TPU film and garment.

For detailed T-shirt, hoodie, jersey and cap transfer guidance, see the 3D Raised Logo Heat Transfer Guide。

Difference #5: The Production Workflow Is Different

The difference becomes especially clear when the full workflows are placed side by side.

UV DTF Crystal Label Workflow

藝術品

↓

Print UV Artwork on A Film

↓

紫外線固化

↓

Laminate with B Film

↓

Prepare / Cut Transfer

↓

Apply to Hard Surface

↓

Press / Burnish

↓

Peel Carrier

The product is now decorated.

3D Raised Apparel Logo Workflow

Artwork / RIP Separations

↓

Build High-White Structure

↓

Print Flexible CMYK

↓

Add Varnish

↓

Controlled UV Cure

↓

輪廓切割

↓

Position on Garment

↓

熱壓機

↓

Peel & Inspect

The apparel workflow includes more steps because the printed structure itself becomes a flexible textile component.

For the complete process, see How to Make 3D Raised Logos with a UV DTF Printer。

Difference #6: Varnish Does Not Mean the Same Kind of “3D”

This distinction is easy to misunderstand.

UV varnish can create:

• 光澤度
• 斑點光澤
• transparent texture
• surface relief
• localized raised effects

So a UV DTF crystal label does not have to be visually completely flat.

However, a raised varnish effect on a hard-surface decal is not the same design objective as a flexible apparel badge with approximately 0.3–1.2 mm of physical structure.

水晶標

Varnish may be used to produce:

• 光澤度
• 透明深度
• localized texture
• premium visual effects

3D 凸起標誌

In the EraSmart apparel workflow:

High-build white creates most of the physical structure.

Flexible CMYK creates the visible design.

Varnish creates the final surface finish.

This difference in layer function is important when preparing artwork.

For White, CMYK, Varnish and Cut Line setup, read the 3D Raised Logo Artwork Guide。

Difference #7: Hard Surfaces vs Textiles

The intended substrate is often the easiest way to decide which workflow you need.

Choose a Crystal Label for Products Such As:

• glass bottle
• tumbler
• acrylic display
• ceramic mug
• metal bottle
• plastic product
• finished wood product
• 手機殼
• 包裝

These products provide the relatively stable surface needed for adhesive transfer.

Choose a 3D Raised Logo for Products Such As:

• T恤
• 連帽衫
• sweatshirt
• sports jersey
• baseball cap
• fabric bag
• textile accessory

These applications require a transfer that can remain attached while the substrate bends and moves.

Difference #8: The Physical Layer Structure Is Different

The two systems also look very different in cross-section.

Crystal Label Structure

A simplified crystal-label system includes:

• varnish / clear finishing
• CMYK影像
• 白墨水
• transfer-film system
• adhesive interface
• hard substrate

The exact film structure depends on the A/B consumables being used.

3D Raised Apparel Logo Structure

A simplified raised-logo structure includes:

• 漆
• flexible CMYK
• repeated high-build white structure
• flexible UV-DTF / TPU base film
• TPU hot-melt adhesive layer
• textile substrate

The raised-logo design is therefore engineered around both height and flexibility。

Do Not Use Thickness Alone to Identify the Process

A very glossy or heavily varnished crystal label can appear dimensional.

A poorly configured raised apparel logo may also fail to reach the desired height.

The correct classification comes from the complete system:

Ink + Film + Adhesive + Transfer + Substrate

not appearance alone.

Difference #9: The Printer Configuration Has Different Demands

A compatible UV DTF printer platform may potentially support more than one workflow, but changing from crystal labels to 3D textile logos is not as simple as choosing a different graphic in the RIP.

3D high-build production places additional demands on the system.

Independent White, CMYK and Varnish Output

The printer must be able to control:

• high-build white
• flexible CMYK
• 漆

as separate ink functions.

Adjustable LED-UV Curing

Thick flexible UV ink needs controlled curing.

If only the surface cures too aggressively while the inner structure remains insufficiently cured, problems such as:

• wrinkling
• incomplete internal curing
• layer instability
• delamination

can occur.

Controlled staged curing is therefore more important when producing a thick structure.

White-Ink Circulation

High-build flexible white ink contains a high pigment load.

White ink circulation and stirring help reduce:

• 顏料沉降
• inconsistent white density
• nozzle problems

The EraSmart A2 platform includes adjustable UV curing hardware and a UV DTF film system for standard crystal-label production; the actual 3D raised-logo configuration must still be matched to the intended flexible ink and consumable workflow.

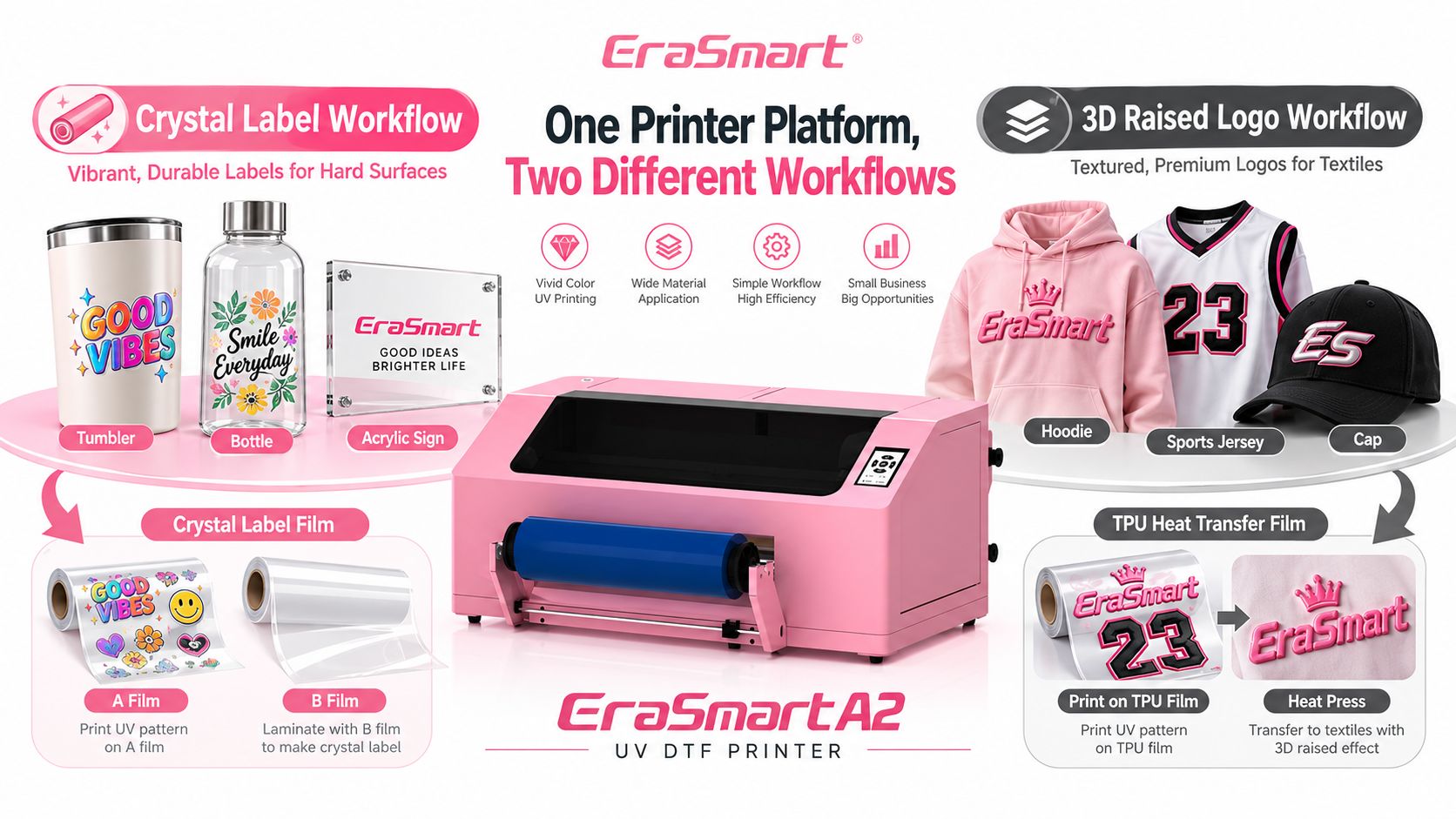

Can the Same A2 UV DTF Printer Produce Both?

Potentially, the same compatible machine platform can support both types of application when it has the required ink-channel, curing and ink-management capabilities.

But this does not mean the two workflows use the same consumables.

Crystal Label Configuration

Uses:

• standard UV-compatible ink system
• Crystal Label A/B Film
• lamination workflow
• hard-surface application

3D Raised Logo Configuration

Requires:

• high-flexibility 3D UV ink
• high-build structural white
• flexible CMYK
• 漆
• controlled curing
• TPU transfer materials
• 輪廓切割
• 熱壓

The important concept is:

One compatible printer platform can open different applications, but each application still needs the correct material and production system.

You can view the EraSmart A2 UV DTF 印表機 for current machine specifications.

Can You Simply Change the Film?

不。

Film is only one part of the system.

A switch from crystal-label production to raised apparel production may involve changes to:

• 墨水類型
• 電影
• 黏合劑
• RIP簡介
• white buildup
• curing strategy
• finishing equipment
• transfer equipment

Do not assume that replacing an A/B film roll with a TPU film automatically creates a stable apparel process.

Can You Put a Standard UV DTF Crystal Label on Fabric?

Standard UV DTF A/B film is primarily designed for compatible hard surfaces.

Textile surfaces are:

• flexible
• porous
• textured
• continuously moving during wear

That is very different from applying a decal to acrylic or glass.

A standard crystal-label transfer may appear to adhere temporarily to some materials, but that should not be confused with a dedicated flexible, washable apparel transfer system.

For apparel, use a workflow designed around textile flexibility and heat bonding.

Can You Use the 3D Raised Apparel Workflow on Hard Products?

The raised-logo workflow is optimized around:

• flexible UV ink
• 熱塑性聚氨酯
• heat activation
• textile bonding

For a tumbler, acrylic sign, glass bottle or ceramic product, the standard UV DTF A/B Film workflow is normally the more direct EraSmart solution.

The purpose of choosing the correct workflow is not to make every technology work on every substrate.

It is to use the production system designed for the product you are actually selling.

Which Workflow Is Faster?

This depends on what you mean by faster.

Crystal Labels

The process is highly efficient for decorating hard goods because:

• no direct product printing jig is required
• multiple designs can be produced on film
• transfers can be stored and applied later
• the final object does not require garment heat pressing

3D Raised Logos

The process includes additional steps such as:

• repeated structural white output
• controlled curing
• 輪廓切割
• garment positioning
• 熱壓

The additional processing creates a completely different finished product.

So production speed should be evaluated against the value and application of the final product rather than compared as if both workflows make the same item.

Which Workflow Is Better for Short-Run Customization?

Both can work well for short-run digital production, but they serve different markets.

Crystal labels are useful for personalized hard goods such as:

• 飲具
• 禮物
• 化妝品包裝
• 促銷產品

3D raised logos are useful for customized:

• 團隊服裝
• 街頭服飾
• fashion garments
• 俱樂部服裝
• 帽子
• branded textile merchandise

The better workflow depends on what your customer wants to decorate.

您應該選擇哪一個？

Use a UV DTF Crystal Label when your target product is primarily a compatible hard surface.

Typical examples:

Glass / Acrylic / Ceramic / Metal / Plastic / Finished Wood / Bottles / Tumblers

選擇一個 3D 凸起標誌 when your target product is apparel or another compatible textile where flexibility, tactile height and heat-transfer adhesion are required.

Typical examples:

T-Shirts / Hoodies / Jerseys / Caps / Textile Bags

If your business plans to produce both categories, evaluate the complete production workflow rather than selecting the printer only by print width or printhead model.

You need to consider:

• consumable changeover
• ink compatibility
• 光柵影像處理設置
• 養護
• 層壓
• 輪廓切割
• 熱壓
• production volume

A Simple Decision Framework

問：

Are you decorating a rigid product?

Choose the Crystal Label workflow。

Are you decorating a garment?

Choose the 3D Raised Logo workflow。

Do you mainly need glossy product stickers?

Start with standard UV DTF.

Do you need real tactile height on apparel?

Use the flexible 3D raised-logo process.

Do you want both applications?

Choose a compatible platform and plan each workflow as a separate consumable and finishing system.

Common Mistakes When Comparing the Two

Mistake 1: Assuming Both Use the Same Ink

They have different mechanical requirements.

Rigid-surface and flexible-textile output should not automatically be treated as interchangeable.

Mistake 2: Calling Every Raised UV DTF Product a 3D Apparel Logo

Varnish texture on a bottle label is not automatically the same thing as a flexible 0.3–1.2 mm textile badge.

Mistake 3: Using Standard A/B Film as a Textile Transfer Film

A/B film is designed around crystal-label transfer.

The raised apparel workflow uses an appropriate TPU-based textile system.

Mistake 4: Assuming the Same Transfer Method Works for Both

Crystal labels use pressure-based application.

Raised apparel logos require controlled heat pressing.

Mistake 5: Choosing Only by Visual Appearance

A glossy crystal label and a glossy raised apparel badge may look related in a photograph.

Their actual production structures can be completely different.

最後的收穫

A UV DTF crystal label and a 3D raised apparel logo are best understood as two different application systems built around UV digital printing。

A crystal label is designed around:

Standard UV Ink

A/B 膠片

硬表面轉移

A 3D raised apparel logo is designed around:

High-Flexibility 3D UV Ink

High-Build Structural White

Flexible CMYK

漆

TPU Transfer & Hot-Melt Adhesive

熱壓機

紡織品

The printer platform may be compatible with both applications, but the film and ink are only the beginning of the difference.

The entire production workflow must match the final product.

For crystal-label production, explore the EraSmart UV DTF Printer range 和 A/B Film Guide。

For apparel decoration, continue with the 3D 凸起標誌列印解決方案，，，， Complete 3D Raised Logo Workflow，，，， White Ink Height-Building Guide 和 3D Raised Logo Heat Transfer Guide。

常見問題

Is a UV DTF crystal label the same as a 3D raised logo?

No. They may use a similar UV printing platform, but the ink, film, adhesive, transfer process and target substrate are different.

What film does a UV DTF crystal label use?

A conventional UV DTF crystal label uses an A/B Film system. The graphic is printed on A Film, laminated with B Film and then transferred onto a compatible hard surface.

What film does a 3D raised apparel logo use?

The EraSmart raised-logo workflow uses a flexible textile-transfer system based on suitable TPU materials, including a flexible base/transfer film and TPU hot-melt adhesive.

Can UV DTF crystal labels be used on T-shirts?

Standard A/B film crystal labels are primarily designed for suitable hard surfaces rather than flexible, washable textile applications. Apparel should use a transfer system designed for textiles.

What creates the height in a 3D raised logo?

In the EraSmart workflow, repeated high-build flexible white ink layers create most of the physical structure. Flexible CMYK creates the visible color and varnish finishes the surface.

Can crystal labels have a raised effect?

Yes. UV varnish can create gloss, texture and localized raised effects. However, this is not the same production structure as a flexible 3D apparel badge with a high-build white foundation and TPU heat-transfer system.

Does a crystal label need a heat press?

Standard UV DTF crystal-label application normally uses pressure rather than garment-style heat pressing.

Does a 3D raised logo need a heat press?

Yes. The TPU hot-melt adhesive system is activated with controlled heat and pressure before bonding to the textile.

What are the reference heat-transfer settings for the EraSmart 3D raised-logo workflow?

The current reference range is approximately 150–165°C for 10–15 seconds at around 0.4–0.6 MPa. Final settings should always be verified with the actual TPU materials and garment.

Can the same EraSmart A2 printer make both crystal labels and 3D raised logos?

A compatible A2 platform may support both workflows when it has the appropriate ink-channel, curing and ink-management configuration. However, the consumables and downstream process are different, so it should not be treated as a simple film-only change.

Which workflow is better for tumblers and bottles?

UV DTF crystal labels are generally the more appropriate workflow for compatible hard products such as tumblers, bottles, acrylic, ceramic and metal.

Which workflow is better for hoodies and jerseys?

The 3D raised-logo workflow is designed for compatible textiles such as hoodies, T-shirts, jerseys and caps where flexibility, heat-transfer adhesion and raised tactile structure are required.
