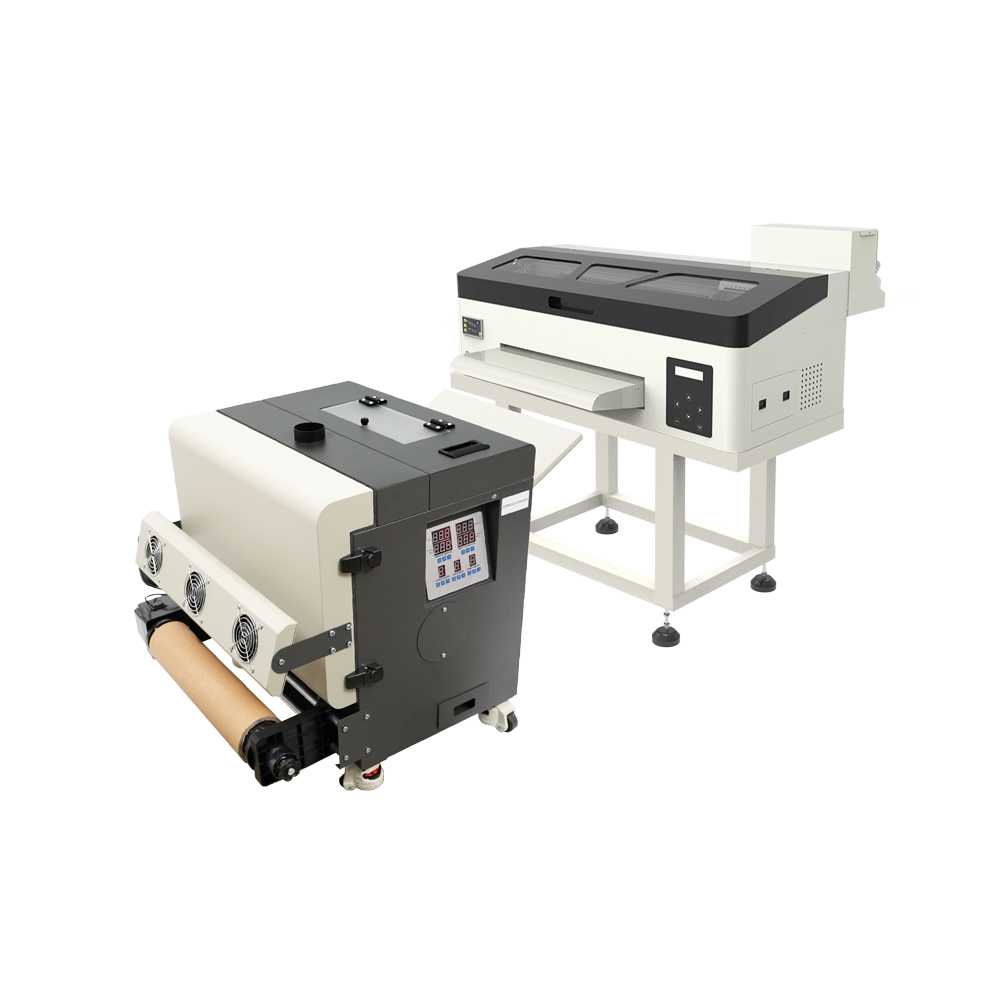

Erasmart A3 Max DTF Printer Single xp600 Printhead

A3 Max DTF Printer

A3+ Printing Size: Max printing width is 35cm
XP600 printhead: Equipped with single Epson XP600 printhead, 6-color printing, full and vibrant colors.
Stable and noiseless: Equipped with a silent guide rail, stable operation with no noise.
Temperature control system: You can check the current heating temperature at any time and adjust it according to environmental changes.
Openable acrylic perspective window: View the printing process and effect at any time.
Built-in vacuum platform: The film is flatly adsorbed on the vacuum platform, maintaining printing height and precision printing.
Dual white ink system: white ink circulation and stirring system, ensuring white ink lasting and delicate without precipitation.
Multi-functional operation panel: Multiple functions can be controlled manually or by software.
Roll and sheet film printing: One machine can achieve batch printing or on-demand printing.

Download enquiry

Specifications
Product Series

A3 Max DTF Printer
Product Name	DTF Printer	Ink Type	DTF Ink
Model	A3 Max	Suction Platform	Yes
Motherboard	Wellprint	USB Interface	USB3.0
Print Head	XP600	Printing Environment	15-30℃
No. Of Print heads	Single Print Head	Relative Humidity	40-60%
Software	Photoprint(free)/Ripint/EraRip/Maintop	Rated Power	100W
Operation System	Windows XP/7/8/10/11	File Format	tiff/jpeg/jpg/png/pdf/eps
Printing Color	CMYK+WW	Warranty Time	38 months warranty (Ink contact parts are not warranty)
Printing Width	Up to 350mm	Printing Material	Textile/Fabric/Leather/Canvas/Cotton/Linen/ Chemical Fibe, etc.
Print Head Cleaning	Auto Cleaning	Equipment Size	830550260mm
Printing Media	Roll&Sheet Pet Film	Equipment Weight	25kg
Printing Resolution	1440dpi	Package Size	860x570x380mm
Printing Speed	8pass 3㎡/h	Package Weight	40kg

	A4 DTF Printer	A3 DTF Printer	A3 Max DTF Printer	A3 Pro DTF Printer	A1(XP600) DTF Printre	A1(i3200 )DTF Printer	A1(i1600) DTF Printer
Product Name	DTF Printer
Model	A4	A3	A3 Max	A3 Pro	A1(XP600)	A1(i3200)	A1(i1600)
Motherboard	L805	R1390/l1800/DX5	Wellprint	Hoson	Hoson	Hoson	Hoson
Print Head	L805	1390/l1800/DX5	XP600			i3200	i1600
No. Of Print heads	Single Print Head			Dual Print Heads	Dual Print Heads		Dual Print Heads
Software	AcroRip10.5(free)/EraRIP	AcroRIP9.03(free)/EraRIP	Photoprint(free)/Ripint/EraRip/Maintop
Operation System	Windows XP/7/8/10/11
Printing Color	CMYK+WW	CMYK+WW/CMYK+WWWW	CMYK+WW	CMYKCM+WWWWWW/CMYKLcLm+WWWWWW	CMYKCM+WWWWWW/CMYKLcLm+WWWWWW	CMYK+WWWW
Printing Width	Up to 200mm	Up to 340mm	Up to 350mm		Up to 620mm
Print Head Cleaning	Auto Cleaning
Printing Media	Roll&Sheet Pet Film
Printing Resolution	1440dpi
Printing Speed	A4(1440dpi/3min)	A3(1440dpi/10min)/DX5(2min)	8pass 3㎡/h	8pass 5㎡/h	8pass 6㎡/h	8pass: 10㎡/h
Ink Type	DTF Ink
USB Interface	USB3.0			Network Interface
Suction Platform	No	Yes
White ink circulation system	Yes
Printing Environment	15-30℃
Relative Humidity	40-60%
Voltage	220V/110V
Rated Power	50W		100W	100W	150W	150W	150W
File Format	tiff/jpeg/jpg/png/pdf/eps
Warranty Time	38 months warranty (Ink contact parts are not warranty)
Printing Material	Textile/Fabric/Leather/Canvas/Cotton/Linen/ Chemical Fibe, etc.
Equipment Size	580260200mm	750350250mm	770320260mm	770320260mm	980450360mm	1160500370mm	1160500370mm
Equipment Weight	10.5kg	22kg	30kg	30kg	55kg	60kg	60kg
Package Size	650470280mm	830410370mm	860x570x380mm	860x570x380mm	1055575525mm	1180520400mm	1180520400mm
Package Weight	13kg	28kg	38kg	39kg	69kg	75kg	75kg
